Passageway Place Waterfall Project
Progress Report
(Updated January 13, 2005)

You fill this little pit with water.
Which is pumped thru a 2" pipe up to a rubbermaid storage bin with a whole in the side on top of the hill.
The water then runs down a rubber lined path covered with cement back into the pit.
The whole thing is covered with real and realistic looking cement rocks and other natural props.
And the process all starts again - over and over all day and night.
And for this I took 5+ months of my life to create!

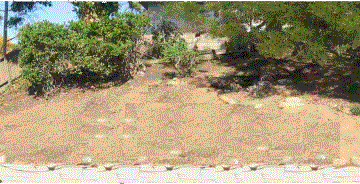

click here - Transition
Click on image to see full size
Use Back Button to Return
Click to View Full Image
Prepared hillslide prior to digging
Click to View Full Image
Before Closer view
click here - Sideview Drawing
Sideview Drawing
Click to View Full Image
Digging Begins
Click to View Full Image
Pit Dug out
Click to View Full Image
Retaining Wall Forms
Click to View Full Image
Retaining Wall Complete
Click to View Full Image
Faux Rock
Click to View Full Image
Liner and rocks in place - First Test
Click to View Full Image
Pit/Pond Ready for Color
Click to View Full Image
Mortered and ready for color coat
Click to View Full Image
Flow Valve - diverts water
Click to View Full Image
Where&#39'd it go? - Flow Control Rock
Click to View Full Image
Retaining Wall before steps
Click to View Full Image
Steps lead to Flintstone Bench and Firepit
Click to View Full Image
Flagstone walk and firepit 90% complete
Click to View Full Image
Testing - A Big Mess
Click to View Full Image
Lights On
Click to View Full Image
Lights On - Closer
Click to View Full Image
Artificial Plants (Within Chlorinated Water)
Click to View Full Image
Landscape Mockup
Click to View Full Image

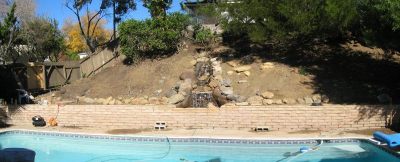

Ready for Landscaping
Click to View Full Image

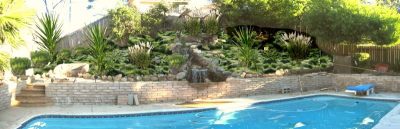

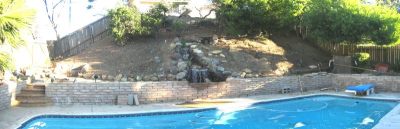

Christmas Eve
Click to View Full Image
Landscape Mockup
Click to View Full Image

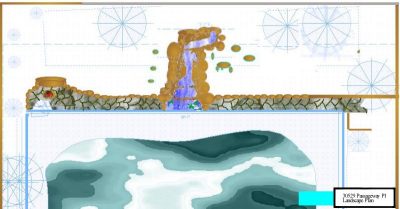

Landscape Plan Drawing
Click to View Full Image
Landscaping Begins at waterfall
Click to View Full Image
Landscaping Begins at Bench

Specifications:
Liner: Firestone PondGard EPDM liner, 4.5 mil
Waterfall Pump: EasyPro - TH250 4.0 amp | 1/3 HP | 3900 Gal/Hour (2760 gph@10')
Pipe: 2" Flexible PVC Pipe
Rock Construction: Morter on Building paper/wire then shaped/distressed and colored (multiple shades) - combined with natural boulders (up to 350lb.) gathered from various local construction sites.
Water Source: Chlorinated Water is filled from Pool Filter system & level is maintained by mini-toilet float valve.
Water Diversion & Draining: Ball Valve system on 2" pipe line.
Overflow: Central Machinery - 3/4HP Dirty Water Submersible Pump with Tether Float Switch.
Power: 110 Volts on dedicated GFCI circuit.
Lighting: 12 Volts on timer - (2) Vista Pro Model #5217 w/MR-16 Lamp Submersible Halogen narrow spots at 30 watts, (6) Submersible Spots with Colored Gels from Harbor Freight at 20 watts, (1) Outdoor Low Voltage Rock Light at 20 watts.
Special Thanks to Jim at Justliners.com for supplying Pump and Liners etc. and invaluable technical assistance.

Plant List: (click to open in new browser window)
  • Philodendron Selloum
  • Juncus Effusus Pacificus 'Quartz Creek' - Quartz Creek Soft Rush
  • Rumohra Adiantiformis - Leatherleaf Fern
  • Nephrolepis Cordifolia - Austrialian Sword Fern
  • Phoenix Roebelenii - Pygmy Date Palm
  • Strelitzia Reginae - Bird of Paradise
  • Phormium Tenax 'Atropurpureum Compactum' - Bronze New Zealand Flax
  • Asparagus Densiflorus 'Myers' - Pony Tail Fern
  • Coleonema Pulchrum - Pink Breath Of Heaven
  • Phormium 'Tom Thumb' - New Zealand Flax
